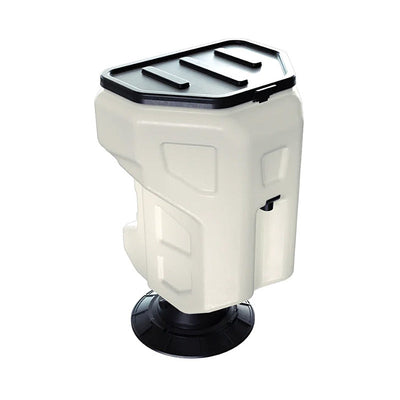

DJI Agras T50 Spreading System

Overview

The DJI Agras T50 Spreading System, with its 75L spread tank, is compatible with the DJI Agras T50 aircraft and offers efficient and reliable spreading. Users can configure spreading settings in the DJI Agras app and create specific templates for different materials in order to meet different requirements. The app also provides warning prompts for an empty tank as well as for abnormalities in rotational speed, temperature, and hopper outlet size.

Spread with Speed

The T50 spreading system is equipped with the all-new spinner disk to spread the material more efficiently and evenly. The control module on the spreading system and the weight sensors on the aircraft monitor the remaining weight of the material in the spread tank in real-time to improve the accuracy of the spread rate control and empty tank warnings. The updated fenders can block the spreading material that flies upward to prevent it from damaging the propellers. The quick-release hopper gate allows for easy maintenance and can be replaced easily with the small flow hopper gate when spreading materials with a small flow or diameter.

Features
-75 L max capacity and an expanded loading gate for quick refills.
-The torque of the spreader is doubled and the discharge hatch is enlarged to enable a flow rate up to 108 kg/min.
-DJI Agras T50's spiral channel spinning disk makes spreading more uniform.
-The hopper gates can be switched to small to improve spreading accuracy with a low flow rate.
-The spreader can be quickly disassembled and cleaned for easy maintenance.
